Arduino Motorshield

http://www.ladyada.net/make/mshield/index.html

Schematic: http://www.ladyada.net/images/mshield/mshieldv1-schem.png



Theorie

Image2Bipolar (4-Wire): die Spulen werden  in beide Richtungen vom Strom durchflossen

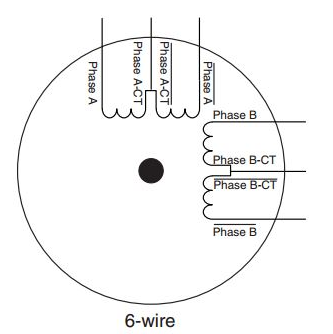

Unipolor (6-Wire): die Spulen werden nur in eine Richtung vom Strom durchflossen

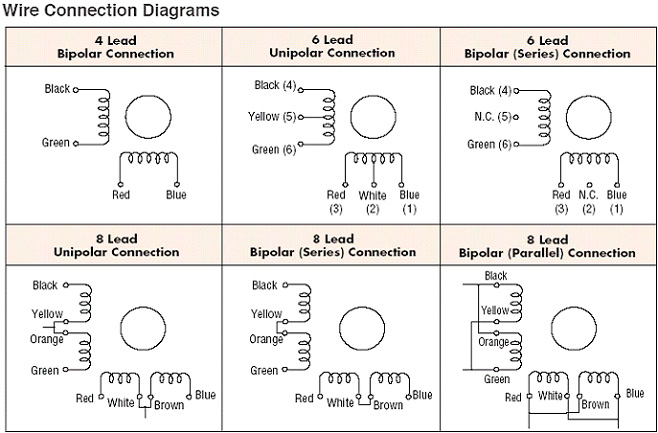

http://www.orientalmotor.com/stepper-motors/technology/unipolar-bipolar-connections.html

Signalisierung

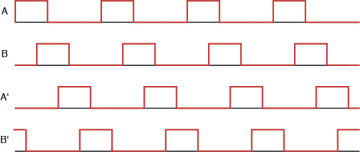

Figure 4.17Illustration 1: Full-step (two phases on) mode















1001 – 1100- 0110 – 0011 - ...

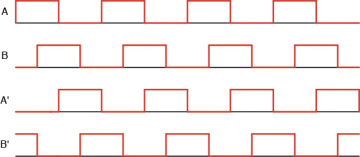

Image6Illustration 2: Halbschritt Modus





1001-1000-1100-0100-...















Arduino Motorshield Inbetriebnahme

  1. Jumper pWR abziehen und externe Versorgung für die Motoren an EXT_PWR anschließen

  2. Motor auf M3 und M4 anschließen

  3. Testprogramm durchlaufen lassen (vorwärts/rückwärts)

Unipolar-Motoren

Stepper Motor rSMR40-4814 ( ==> 48 Steps)

  • Rot … Mittelanzapfung

  • Schwarz/Braun Strang1 (S-Rot: 30 Ohm; Schw-Br: 60 Ohm)

  • Orange/Gelb Strang2

  • Ansteuerung: M3-M4 für Rechtsdrehung
    // to motor port #2 (M3 and M4)
    // M3 Schwarz/Braun/ M4 Gelb/Orange) Mittelanzapfung Rot Offen
    AF_Stepper motor(48, 2);





Stepper Motor 42sim-24dcb ==> 24 Steps

  • Weiss … Mittelpunkt

  • // M3 blau/gelb/ M4 braun/rot) Mittelanzapfung weiß Offen

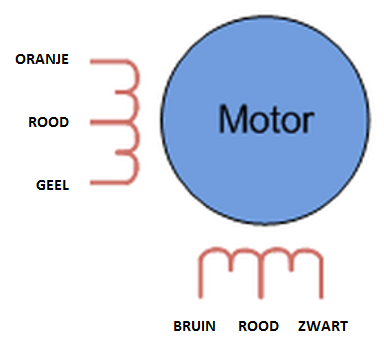

Fuji Electrochemical SMR40-4814-B

Image1http://domoticx.com/pinout-stappenmotor-fuji-electrochemical-smr40-4814-b/









The Future

L6470 and L6472: fully integrated stepper motor drivers;

The L6470 and L6472 are fully integrated motor drivers providing a complete standalone

solution for the high-end stepper motor applications. The devices can be controlled by a host microcontroller through a fast SPI interface and are able to execute a complete set of

motion commands.

  • L6470 voltage mode driving and the

  • L6472 advanced current control



Demoboards at ebay

http://www.st.com/content/ccc/resource/technical/document/application_note/f3/f5/78/c8/38/11/44/02/DM00075650.pdf/files/DM00075650.pdf/jcr:content/translations/en.DM00075650.pdf

adafruit/AFMotor Library

https://cdn-learn.adafruit.com/downloads/pdf/adafruit-motor-shield.pdf

Functions

AF_Stepper steppername(steps, portnumber)

steps 48 (48 Schritte je Umdrehung) portnumber 1(M1/M2)  2(M3/M4)

setSpeed(RPMspeed)

onestep(direction, stepstyle)

release()



STEP Valid values for 'style' are:

SINGLE - One coil is energized at a time.

DOUBLE - Two coils are energized at a time for more torque.

INTERLEAVE - Alternate between single and double to create a half-step in between. This can result in smoother operation, but because of the extra half-step, the speed is reduced by half too.

MICROSTEP - Adjacent coils are ramped up and down to create a number of  'micro-steps' between each full step. This results in finer resolution and smoother rotation, but with a loss in torque



adafruit/AccelStepper

Erweiterte Lib zur Ansteuerung mehrerer Stepper gleichzeitig; Beschleunigung usw.



Schematic

https://www.adafruit.com/product/81

Schemratic

Eagle Files1


// Arduino pin names for interface to 74HCT595 latch

#define MOTORLATCH 12

#define MOTORCLK 4

#define MOTORENABLE 7

#define MOTORDATA 8

Links

Gutes Video: https://www.youtube.com/watch?v=TWMai3oirnM
